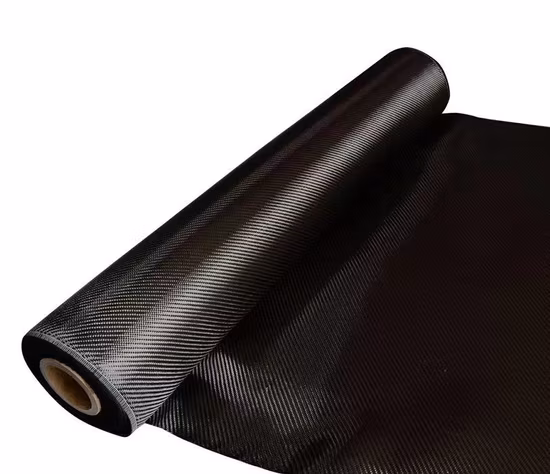

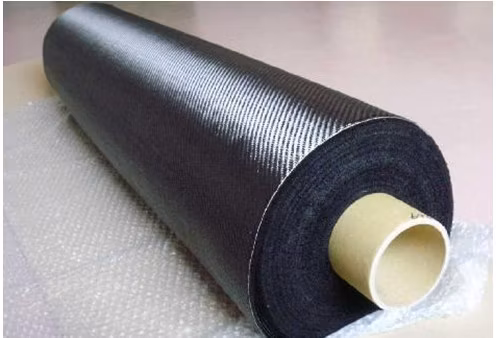

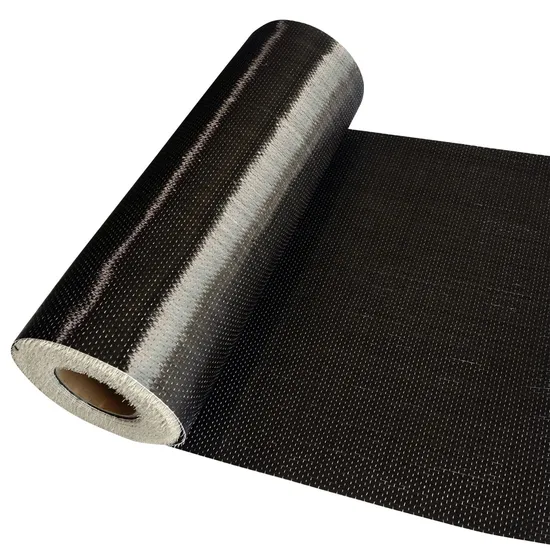

3K 200GSM 220GSM 240GSM 2*2 Twill Carbon Fiber Fabric

Basic Info

Technics	Woven
Width	57/58′′
Weight	177GSM
Style	Plain
Application	Garment, Bag, Dress, Lining
Transport Package	Roll-Packing
Specification	CUSTOMED
Trademark	DianYue
Origin	Jiangsu China
HS Code	600632000
Production Capacity	888888

Product Description

Product Description

Carbon Fiber Fabric is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins.

Main application:

Aircraft main, tail and body; automobile engines, synchronizers, hoods, bumpers, decorative parts, etc.; bicycle frames, wheels,faucets; rackets, silver basins; kayaks, snowboards; various models, helmets, and building reinforcements Reinforcement, watches,pens, luggage.

Features:1, high tensile strength and light weight2, abrasion and corrosion resistance3, high electric conductivity4, high elastic modulus5, high temperature resistant6, type : 1k,3k,6k,12k7, weave ways : bidirectional twill,bidirectional tabby,unidirectional woven8, standard width is 1000mm,other width can be customized

Type	Reinforcement Yarn		Weave	Fiber Count(Wmm)		Weight (g/m2)	Thickness (mm)	Width (cm)
	Warp Yarn	Weft Yam		Warp Ends	Weft Picks
SAD-1K-P	1K	1K	Plain	9	9	120	0.16	100
SAD-1K-X	1K	1K	Twill	9	9	120	0.16	100
SAD-1K-P	1K	1K	Plain	10.5	10.5	140	0.17	100
SAD-1K-X	1K	1K	Twill	10.5	10.5	140	0.17	100
SAD-3K-P	3K	3K	Plain	5	5	200	0.30	100
SAD-3K-X	3K	3K	Twill	5	5	200	0.30	100
SAD-3K-P	3K	3K	Plain	6	6	240	0.32	100
SAD-3K-X	3K	3K	Twill	6	6	240	0.32	100
SAD-3K-P	3K	3K	Plain	7	7	280	0.34	100
SAD-3K-X	3K	3K	Twill	7	7	280	0.34	100
SAD-6K-P	6K	6K	Plain	4	4	320	0.38	100
SAD-6K-X	6K	6K	Twill	4	4	320	0.38	100
SAD-6K-P	6K	6K	Plain	5	5	400	0.42	100
SAD-6K-X	6K	6K	Twill	5	5	400	0.42	100
SAD-12K-P	12K	12K	Plain	2.5	2.5	400	0.46	100
SAD-12K-X	12K	12K	Plain	3	3	480	0.52	100
SAD-12K-P	12K	12K	Twill	3	3	480	0.52	100
SAD-12K-X	12K	12K	Twill	4	4	640	0.64	100

Product Name	Twill , plain and stain carbon fiber fabric
Material	1K,3K,6K,12K carbon fiber
Color	Black
Length	100meters per roll
Wide	10 ----150cm
Spec	200gsm to 600gsm
Weaving	Twill, Plain and Stain
Used	Aircraft, tail and body, auto parts, synchronous, machine covers, bumpers.
